Description
THD series hopper dryers provide effective and low-cost solutions for plastic material drying. These drying hoppers are capable of drying wet materials that absorb moisture during packaging, transportation and recycling. They can be directly mounted on the moulding machine for quick drying and space saving. For this series, hot air blows evenly from bottom to the top of the hopper with capacity ranging from 12-1,000kg. Optional 24-hour timer is available for each of the 13 model.

Advantages
For this series of hot air dryers, hot air blows evenly from bottom to the top of the hopper (for THD-800/1000, hot air blows from top to bottom) with capacity ranging from 12-1,000kg. Optional 24-hour timer is available for each of the 13 model.

Features
1. Hot air diffuser is designed to keep even hot air flow and improve drying efficiency.
2. Unique hot air inlet elbow design helps to prevent dust from piling up at bottom of the pipe heaters. This can help to avoid burning.
3. All parts inside this hopper dryer are made of stainless steel to prevent materials from being contaminated.
4. Separate material barrel and hopper design facilitates cleaning and material replacement.
5. Our drying hopper is designed with deviation indicating temperature controller to ensure accurate temperature control.
6. Overheat protection device of this hot air dryer prevents accidents arising from human factors or mechanical failure.
7. Temperature warning light, blower contactor and overload protection device are equipped.
8. Exposed power switch is equipped.
9. THD-300U and models below are equipped with aluminum base. THD-400 and models above are equipped with aluminum magnetic base.
10. Optional timing device is available.
11. Optional cyclone separator, exhaust air filter, hot air collector, aluminum magnetic base, blower inlet filter, hopper magnet, suction box, L- or A-type tripod are available.
12. Our hopper dryer complies with European standards, and is certified by CE.

Technical Parameter

Model	THD-12	THD-25	THD-50	THD-75	THD-100	THD-150	THD-200	THD-300	THD-400	THD-500	THD-600	THD-800	THD-1000
Power of Heater (kW)	2.4	3	4.5	4.5	6.6	6.6	12	15	18	19.5	21	24	32
Power of Blower (kW)	0.075	0.17	0.17	0.17	0.2	0.2	0.33	0.33	0.41	0.41	0.55	0.55	1.1
Capacity (kg)	12	25	50	75	100	150	200	300	400	500	600	800	1000
A (mm)	Φ325	Φ385	Φ470	Φ530	Φ595	Φ595	Φ750	Φ750	Φ910	Φ910	Φ910	Φ960	Φ960
B (mm)	660	725	840	900	955	955	1230	1230	1365	1365	1365	1420	1420
C (mm)	865	1015	1145	1240	1340	1580	1750	1985	2105	2285	2530	2700	3000
D (mm)	750	925	1045	1150	1340	1605	1480	1480	1840	1840	2015	2240	2470
E (mm)	360	405	490	550	605	605	770	770	915	915	950	600	600
F (mm)	370	460	520	620	725	970	975	1220	1220	1400	1545	540	540
H (mm)	110	210	220	220	226	226	258	258	302	302	302	1550	1845
I (mm)	170	170	170	170	166	166	158	158	222	222	222	222	222
G (mm)	375	410	380	475	470	470	550	550	775	775	775	950	950
K/L (mm)	150	150	150	150	220	220	257	257	345	345	345	345	345
M (mm)	Φ55	Φ55	Φ55	Φ55	Φ90	Φ90	Φ90	Φ90	Φ105	Φ105	Φ105	Φ105	Φ105
Weight (kg)	35	45	45	55	70	75	120	120	165	170	240	280	300

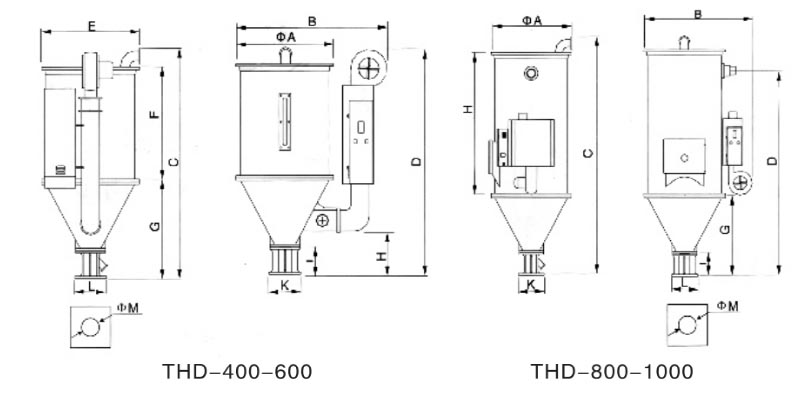

Outline Drawings
