Description

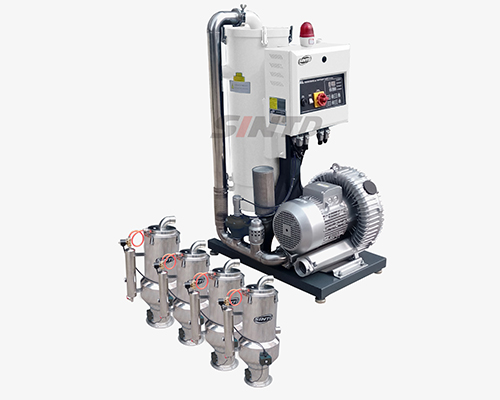

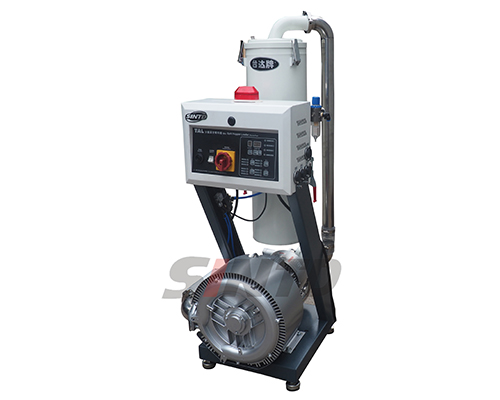

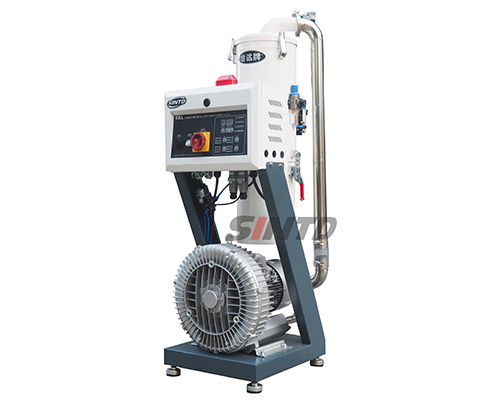

TAL-US series Euro type three-phase separated vacuum hopper loader is a newly-designed hopper loader that features powerful functions, attractive appearance and easy operation and installation. Stainless steel hopper helps prevent the materials from being contaminated. High-pressure blower features light weight, easy operation and installation, long service life, etc.

Features
1. Our industrial vacuum hopper loader uses EEPROM to keep the setting information and save it permanently.
2. Automatic cleaning device and cloth filter mesh are optional. TAL-12U-C/CE and models above can be equipped with air accumulator.
3. Cyclone baffle and separated dust bucket are designed to effectively reduce the working load of filter.
4. Economic series of separated vacuum hopper loader (designed with cloth filter mesh, but has removed the second filter mesh) is available to reduce customer’s costs.
5. Standard and insulation-type European hoppers are available for THR-6U/12U/24U (TAL-UGP series excluded).
6. TAL-UG series separated vacuum hopper loader is designed with two kinds of filter devices: bag filter and plate filter. Optional air accumulator and standard automatic cleaning device are available for this series.
7. Cyclone dust collector is optional for TAL-1HP/2HP-UG industrial vacuum hopper loader.
8. For the TAL-UG separated vacuum hopper loader, if the crushed materials account for 30% of the feeding materials, then 14-mesh stainless steel filter is optional.
9. If the industrial vacuum hopper loader is changed to conform to European regulations, add “CE” after the model name.

Specifications
Model Main Unit Hopper Receiver Loading Pipe Dia. (inch) Air Suction Pipe Dia. (inch) Loading Capacity (kg/hr)
Motor Power (kW) Dimensions (H × W × D) (mm) Net Weight Applicable Model Capacity (L) Dimensions (H × W × D) (mm) Net Weight
TAL-1HP-UG 0.85 (3φ) 1205 × 350 × 530 46 THR-6UX1 6 420 × 285 × 360 6 1.5” 1.5” 300
960 × 350 × 405 39 THR-6U-EX1 600 × 275 × 360 8 1.5” 1.5”
TAL-2HP-UG 1.6 (3φ) 1205 × 350 × 530 46 THR-12UX1 12 470 × 315 × 400 7 1.5” 1.5” 500
960 × 350 × 405 39 THR-12U-EX1 700 × 315 × 400 12 1.5” 1.5”
TAL-3.5HP-UG 3 (3φ) 1380 × 490 × 570 73 THR-24UX1 24 690 × 315 × 400 9 2” 2” 750
1110 × 420 × 545 62 THR-24U-EX1 1120 × 360 × 400 13 2” 2”
TAL-5HP-UG 3.7 (φ) 1380 × 490 × 570 74 THR-24UX1 24 690 × 315 × 400 9 2” 2” 1000
1110 × 420 × 545 65 THR-24U-EX1 1120 × 360 × 400 13 2” 2”
TAL-7.5HP-UG 5.5 (5φ) 1830 × 585 × 675 156 THR-36UX1 36 963 × 315 × 400 11 2” 2.5” 1200
1200 × 460 × 580 112
TAL-10HP-UG 7.5 (3φ) 1830 × 585 × 675 160 THR-36UX1 36 930 × 315 × 400 11 2” 2.5” 1600
1200 × 460 × 580 116
TAL-15HP-UG 11 (3φ) 2100 × 680 × 800 228 THR-48UX1 48 975 × 350 × 485 15 2.5” 3” 2000
1260 × 560 × 800 210
