Description

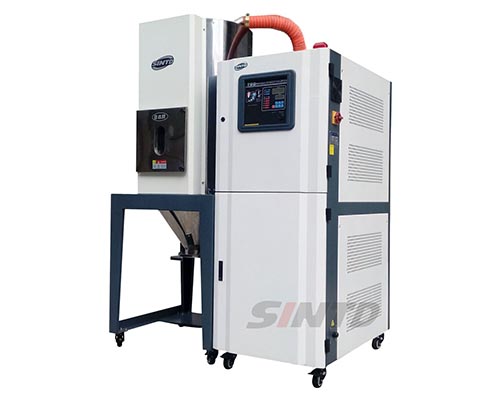

TDD series dehumidifying dryers combine dehumidifying and drying functions into a single unit. Our dehumidifying drying equipment is primarily used for drying hygroscopic engineering plastics, including PA, PC, PBT, PET, etc. All models consist of one TD-H honeycomb dehumidifier and stainless steel drying hopper. These dehumidifying dryers, under ideal conditions, can offer dehumidified dry air with a dew point lower than -40℃.

Features
1. TDD series dehumidifying dryer is equipped with honeycomb dehumidifiers. It has combined dehumidifying and drying functions, and it is designed with attractive appearance.
2. The drying hopper of this dehumidifying drying equipment is characterized by cyclone separator and down blowing of dry air. This improves the drying efficiency and reduces heat loss.
3. Dual coolers ensure low return air temperature and low dew point.
4. Compact in size for ease of movement and space saving.
5. PLC control and LCD touch screen are optional for convenient operation.
6. Dew point monitor is optional.
7. Suction box and hopper loader are optional for convenient material conveying.
8. This dehumidifying dryer complies with European standards, and is certified by CE.

Configuration
Siemens appliances, Taiwan GOORUI blower, Panasonic gear motor, Sweden honeycomb and stainless steel hopper.

Specifications

Model	Power of Regenerative Heater (kW)	Power of Regenerative Blower (kW)	Power of Drying Heater (kW)	Power of Drying Blower (kW)	Air Flow (m3/hr)	Barrel Capacity (L)	Dimensions (mm)	Weight (kg)
TDD-20U/30H	3	0.18	3	0.2	30	20	1240 × 875 × 755	110
TDD-40U/30H	3	0.18	3	0.4	30	40	1300 × 930 × 755	190
TDD-40U/50H	3	0.18	3.9	0.4	50	40	1300 × 930 × 755	190
TDD-80U/50H	3	0.37	3.9	0.4	50	80	1410 × 1030 × 755	210
TDD-TDD-120U/80H	4	0.37	6	0.75	80	120	1780 × 1220 × 820	250
TDD-160U/80H	4	0.37	6	0.75	80	160	1740 × 1220 × 820	255
TDD-160U/120H	4	0.37	6	0.75	120	160	1740 × 1220 × 820	265
TDD-160U/120H	4	0.37	6	0.75	120	160	1740 × 1220 × 820	265
TDD-230U/120H	4	0.37	6	0.75	120	230	2010 × 1220 × 820	295
TDD-230U/150H	4	0.4	7.2	1.5	150	230	2150 × 1450 × 1050	375
TDD-300U/150H	4	0.4	7.2	1.5	150	300	2040 × 1450 × 1050	410
TDD-300U/200H	5.4	0.4	12	1.5	200	300	2040 × 1450 × 1050	420
TDD-450U/200H	5.4	0.4	12	1.5	200	450	2440 × 1450 × 1050	550
TDD-450U/300H	7.2	0.75	15	2.4	300	450	2480 × 1490 × 1255	580
TDD-600U/300H	7.2	0.75	15	2.4	300	600	2380 × 1745 × 1255	615
TDD-600U/400H	7.2	0.75	18	3.75	400	600	2380 × 1745 × 1255	620
TDD-750U/400H	7.2	0.75	18	3.75	400	750	2610 × 1745 × 1255	650
TDD-750U/500H	10	1.5	21	5.5	500	750	2760 × 2140 × 1380	760
TDD-900U/500H	10	1.5	21	5.5	500	900	2640 × 2140 × 1380	820
TDD-900U/700H	10	1.5	24	5.5	700	900	2640 × 2140 × 1380	830
TDD-1200U/700H	10	1.5	24	5.5	700	1200	3070 × 2140 × 1380	870

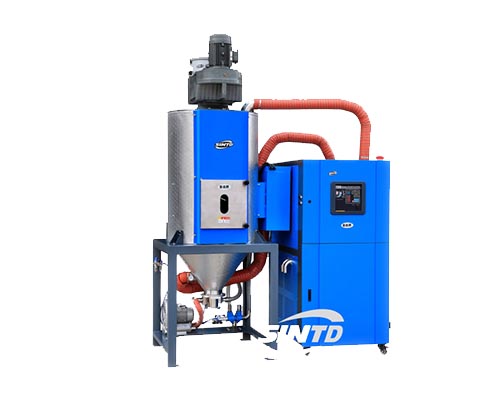

TCD Series (fully-closed)

Model	TCD-160U/120H
Drying System
Power of Drying Heater (kW)	6
Power of Drying Blower (kW)	0.75
Barrel Capacity (L)	160
Dehumidifying System
Power of Regenerative Heater (kW)	4
Power of Regenerative Blower (kW)	0.37
Air Flow (m3/hr)	120
Feeding System
Feed Blower Power (kW)	1.6
THR-U-E Hopper (L)	6
THR-U Hopper (L)	6
Dimensions
H (mm)	1860
W (mm)	1190
D (mm)	875
Weight (kg)	505
