Separated Vacuum Hopper Loader

Separated Vacuum Hopper Loader
Description

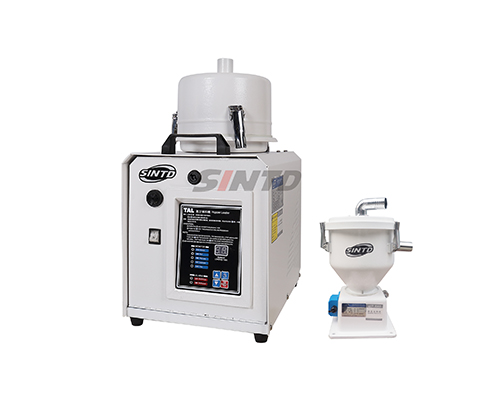

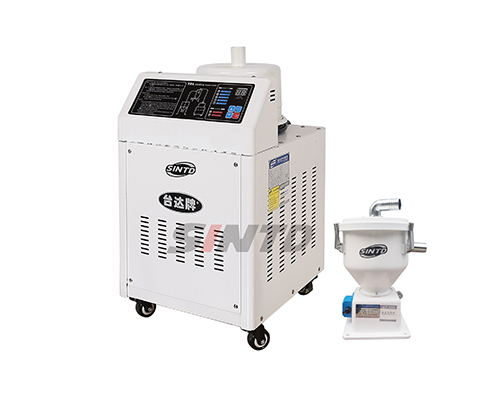

TAL-700G/800G/900G separated vacuum hopper loader is ideal for long-distance conveying of raw materials. Separated design helps satisfy multiple requirements of customers. All models of these stainless steel hopper loaders use stainless steel to avoid contamination to materials. Our separated vacuum hopper loader is also featured by high-pressure blower with high efficiency, motor overload protection function and automatic warning when lack of materials. These functions allow extended service life of the stainless steel hopper loader, along with characteristics such as light weight, convenient installation, ease of operation, etc.

Features
1. Separation of the main unit and the hopper helps satisfy various requirements of customers.
2. Stainless steel hopper of our separated vacuum hopper loader prevents the raw materials from contamination.
3. Precise microcomputer control of the stainless steel hopper loader brings ease of operation. A number of alarming lights are set.
4. Motor protection device helps extend the service life of motor.
5. Alarm when lack of materials makes it easier for operators to respond in time.
6. Independent filter device of this separated vacuum hopper loader facilitates dust removal.
7. Vacuum hopper (TMH) can be mounted directly on the hopper of moulding machine, and photosensor hopper can be mounted directly on the feed inlet of moulding machine.
8. Inspection window of filter facilitates operators to check the conditions of filter and clean it regularly.
9. Optional cyclone dust collector helps reduce the cleaning time of filter, suitable for material conveying and transporting.
10. Optional proportional valve can be used to mix new materials and crushed materials, or immediate recovery of crushed materials.

Specifications
Main Pump Hopper Net Weight (kg) Conveying Pipe Dia. (inch) Conveying Capacity (kg/hr)
Model Motor Type Motor Power Dimensions (H × W × D) (mm) Net Weight (kg) Recommended Model Capacity (L) Dimensions (H × W × D) (mm)
TAL-700G Carbon brush 1.15 (1φ) 710 × 540 × 390 18 TMH-6L 6 450 × 260 × 300 6 1.5 300
TVH-6L 585 × 260 × 330 7
TAL-800G Inductive 0.85 (3φ) 370 × 620 × 420 40 TMH-6L 6 450 × 260 × 300 6 1.5 300
TVH-6L 585 × 260 × 330 7
TAL-800G2 Inductive 1.6 (3φ) 370 × 620 × 420 47 TMH-12L 12 530 × 310 × 350 7 1.5 500
TVH-12L 680 × 310 × 350 10
TAL-900G Inductive 0.85 (3φ) 620 × 365 × 600 50 TMH-6L×1 6 450 × 260 × 300 6 1.5” 500
TVH-6L×1 585 × 260 × 300 7
TMH-6L×2 450 × 260 × 300 6
TVH-6L×2 585 × 260 × 300 7
TAL-900G2 Inductive 1.6 (3φ) 680 × 375 × 740 56 TMH-12L×1 12 530 × 310 × 350 7 1.5 700
TVH-12L×1 680 × 310 × 350 10
TMH-12L×2 530 × 310 × 350 7
TVH-12L×2 680 × 310 × 350 10
