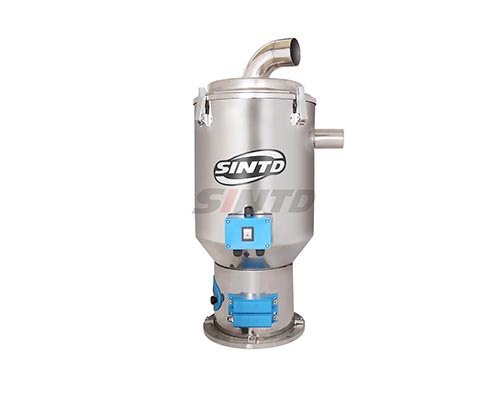

Hopper For Loader

Hopper For Loader
Description
THR-US series hopper loaders are necessary equipment for the central feeding system. We offer two types of hopper loaders to control the material level:
1. Vacuum hopper (U): control the material level with magnetic reed switch, mounts directly on a dryer.
2. Photo sensor hopper (U-E): control the material level through interactive photo sensor switch, can be installed directly on the molding machine.

These two types of hopper loaders are both designed with diaphragm valve to work with the central vacuum generator and the central control station for consistent and reliable feeding and production. Both vacuum hopper and photo sensor hopper adopt plugs that conform to European safety standards to ensure safe operation.

Features
1. Vacuum hopper adopts highly sensitive magnetic reed switch to ensure timely feeding of raw materials without interruption.
2. Photo sensor hopper uses high-precision interactive photo sensor switches to accurately control feeding process.
3. Stainless steel hopper ensures no material contamination.

Specifications
Model Hopper Capacity (L) Conveying Pipe Dia. (inch) Air Suction Pipe Dia. (inch) Control Way of Material Level Dimensions (H × W × D) (mm) Weight (kg)
THR-3U-S 3 1.5 1.5 Magnetic reed switch 585 × 260 × 385 4.5
THR-6U-S 6 1.5 1.5 Magnetic reed switch 555 × 305 × 430 8
THR-12U-S 12 1.5 1.5 Magnetic reed switch 475 × 335 × 615 9
THR-24U-S 24 2 2 Magnetic reed switch 825 × 335 × 475 14
THR-36U-S 36 2 2 Magnetic reed switch 1035 × 335 × 475 15
THR-48U-S 48 2.5 2.5 Magnetic reed switch 1140 × 400 × 540 20
THR-96U-S 96 2.5 2.5 Magnetic reed switch 1385 × 476 × 625 24
THR-3U-ES 3 1.5 1.5 Interactive photo sensor switch 740 × 260 × 385 7
THR-6U-ES 6 1.5 1.5 Interactive photo sensor switch 740 × 295 × 430 10
THR-12U-ES 12 1.5 1.5 Interactive photo sensor switch 840 × 340 × 475 14
THR-24U-ES 24 2 2 Interactive photo sensor switch 1260 × 370 × 475 16

Outline Drawings
